Industrial High-pressure Cleaning Stations

Industrial High-pressure Cleaning Stations and Plunger Pumps

An Industrial High-Pressure Cleaning Station is a complete system designed for demanding cleaning tasks. At its core is the Plunger Pump, the component responsible for generating the high pressure that makes these machines so effective. The pump is the heart, and the station is the entire body.

Part 1: The Heart - Industrial Plunger Pumps

Plunger pumps are a type of positive displacement pump and are the industry standard for high-pressure water applications due to their durability, efficiency, and ability to generate extremely high pressures.

How They Work

The principle is simple and robust:

1. Intake Stroke: An electric motor or diesel engine rotates a crankshaft. This moves a plunger (a smooth, cylindrical piston) backwards, creating a vacuum that opens the inlet valve and draws water into the pump chamber.

2. Discharge Stroke: The crankshaft pushes the plunger forward, compressing the water in the chamber. This pressure forces the inlet valve closed and the outlet valve open, ejecting a precise volume of water at high pressure into the discharge line.

Industrial pumps use multiple plungers (typically 3 or 5) arranged in a configuration called an axial piston pump. The plungers are set around a central driveshaft, and their sequential action smooths out the pressure pulses, delivering a more consistent flow than a single-piston pump.

Key Features & Why They Dominate

· Durability & Long Life: Designed for continuous duty in harsh environments. Critical Components of a Plunger Pump

· Plungers: The "fingers" that push the water. Often ceramic-coated for hardness and low friction.

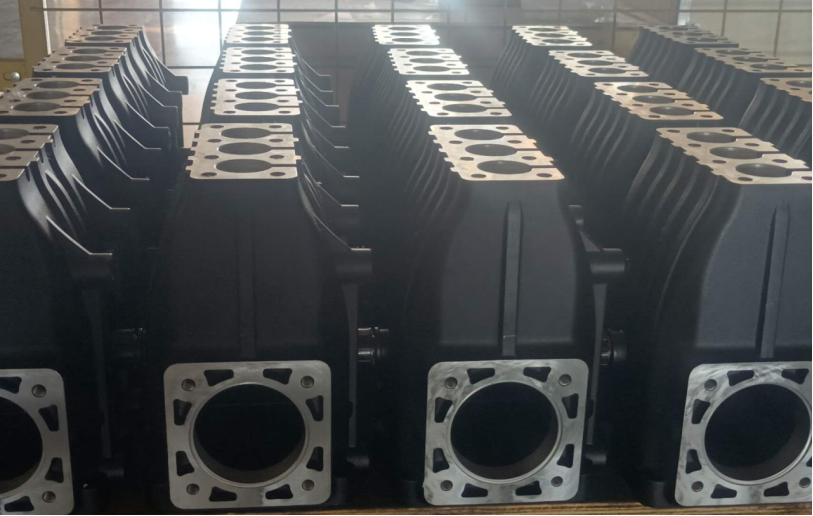

· Cylinder Block: The housing where the plungers reciprocate.

· Inlet & Outlet Valves: One-way valves that control the direction of flow. They are precision-engineered for rapid response and long life.

· Crankshaft & Connecting Rods: Convert the motor's rotary motion into the plungers' linear, back-and-forth motion.

· Packing Seals: Prevent water from leaking out along the plungers. A common wear item that requires periodic maintenance.

Part 2: The Body - Industrial High-Pressure Cleaning Stations

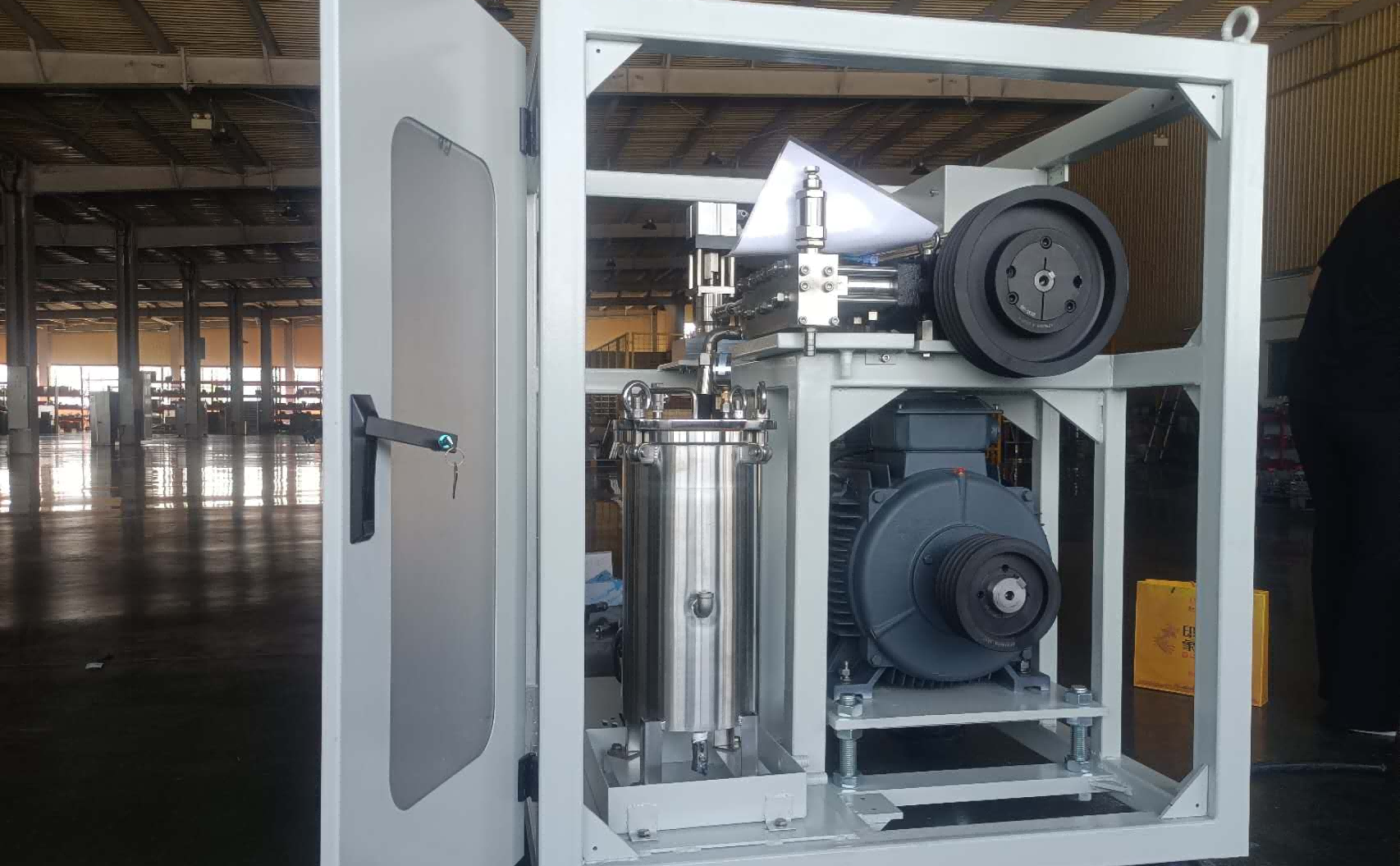

A "cleaning station" is more than just a pump; it's an integrated system built for reliability and specific tasks.

Core Components of a Station:

1.Prime Mover (Power Source):

   · Electric Motor: Common for fixed installations with reliable power. Quiet, zero emissions, suitable for indoor use.

   · Diesel Engine: Provides ultimate mobility and power for remote sites, construction, or agriculture. Higher fuel and maintenance costs but unmatched power and independence.

   · Gasoline Engine: A middle ground for mobility where diesel is not required.

2.Plunger Pump: As described above, sized to match the power source and application.

3.Water Inlet System:

   · Water Filter/Strainer: Essential to protect the pump's precision components from debris and sediment.

   · Water Supply Hose: Must be of adequate diameter to avoid cavitation (a destructive condition where the pump starves for water).

   · Optional Water Tank: For mobile units where a direct water source isn't available.

4.Unloader Valve: A critical safety and control component. It diverts the water flow either to the spray gun or back to the inlet/tank when the gun trigger is released. This allows the pump to run without building pressure, preventing damage and saving energy.

5. Pressure Control & Regulation: Allows the operator to fine-tune the pressure for the specific task without running the pump at full throttle.

6. Thermal Safety Valve (Relief Valve): A final safety device that releases water if pressure exceeds a safe limit, protecting the pump and hoses from catastrophic failure.

7. High-Pressure Hose: Reinforced, flexible hose designed to withstand the continuous operating pressure and pulse surges.

8. Spray Gun, Lance, and Nozzles: The operator interface. Nozzles are critically important—they convert the high flow/low pressure from the pump into a high-velocity jet.

· Orifice Size: Determines the pressure and flow rate.

· Spray Pattern: (e.g., 0° for cutting, 15°-25° for blasting, 40°-65° for rinsing).

Optional, but Common, Add-ons:

· Chemical Injection System (Soap Tank): A downstream injector that draws detergent or sanitizer into the water stream after it leaves the pump, protecting the pump from chemical damage.

· Heater Unit: Turns the station into a Hot Water High-Pressure Washer. Hot water is vastly more effective at dissolving grease, oils, and fats. Essential in food processing, automotive, and heavy machinery maintenance.

· Trolley or Skid Mount: For mobility or permanent installation.

Applications & Industries

Industrial stations are not for washing cars at home. They are for serious, revenue-generating or critical maintenance work.

· Manufacturing & Plant Maintenance: Cleaning molds, machinery, floors, and production lines.

· Food & Beverage: Sanitizing processing equipment, transport vehicles, and facilities (hot water & sanitizer injection is crucial).

· Transportation & Logistics: Cleaning truck fleets, railcars, aircraft, and ship hulls.

· Agriculture: Cleaning barns, pens, and heavy equipment.

· Construction: Prepping surfaces for coating, cleaning equipment, and site cleanup.

· Oil & Gas, Mining: Degreasing heavy machinery and equipment in extreme conditions.

Key Considerations When Selecting a System

1. Pressure (PSI/Bar): Determines the "impact" force. Good for breaking bonds (mud, scale, stubborn debris).

2. Flow Rate (GPM / LPM): Determines the "washing" force. Good for carrying away the dislodged material. Cleaning efficiency is a product of Pressure AND Flow (Impact x Volume).

3. Hot vs. Cold Water: Do you need to dissolve grease or sanitize? If yes, you need a heated unit.

4. Durability & Duty Cycle: Is it for intermittent use (e.g., 2 hours/day) or continuous duty (8-16 hours/day)? Industrial pumps are built for continuous duty.

5. Portability & Power Source: Do you need a mobile diesel unit on a trailer or a fixed electric unit in a factory bay?

In summary, Industrial Plunger Pumps are the robust, high-performance engines that make industrial cleaning possible. An Industrial High-Pressure Cleaning Station is the complete, integrated system built around this pump, designed to deliver reliability, safety, and power for the most demanding tasks across countless industries. The choice between pressure, flow, temperature, and mobility defines the machine's specific role in keeping industry running.
