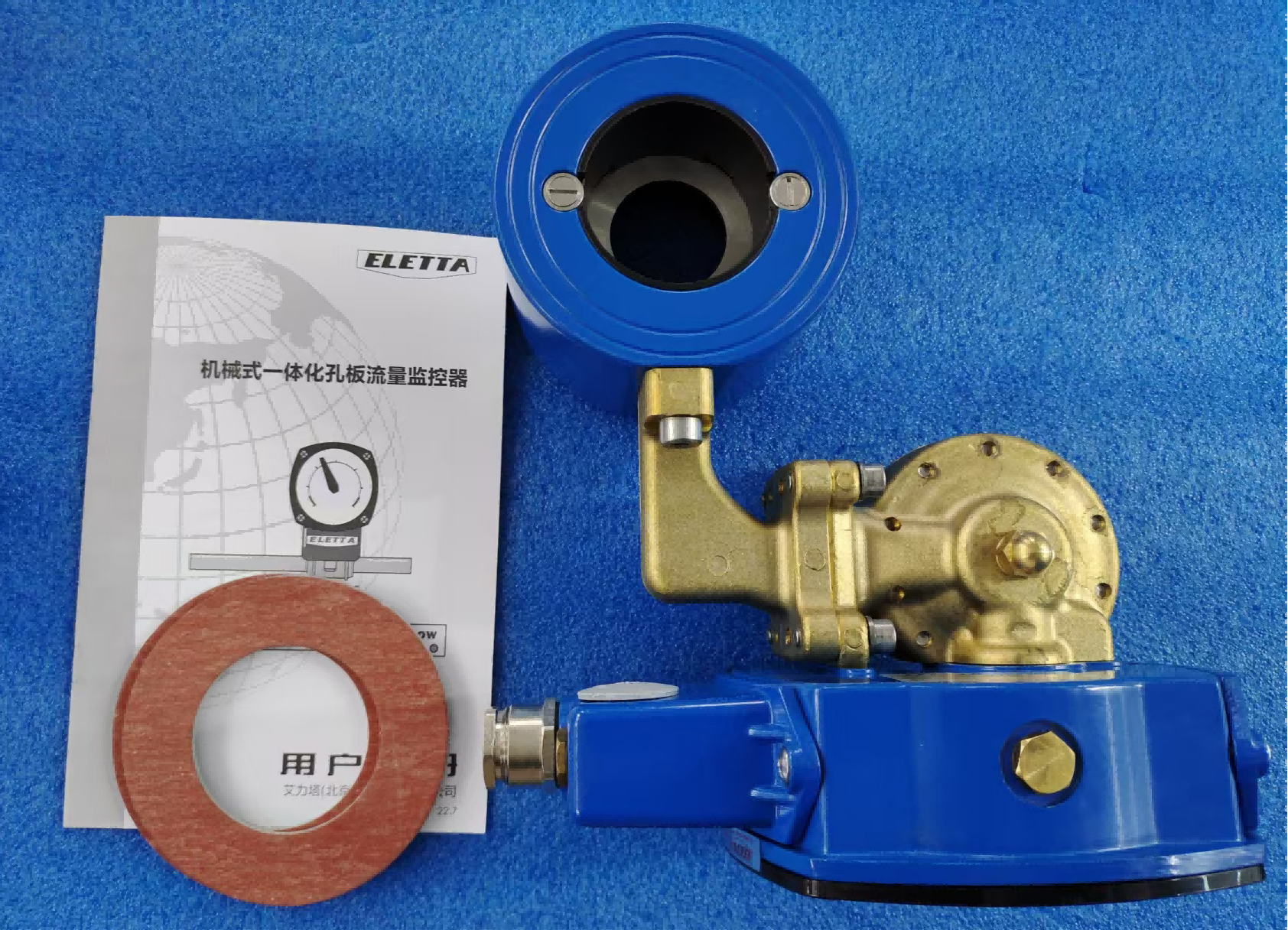

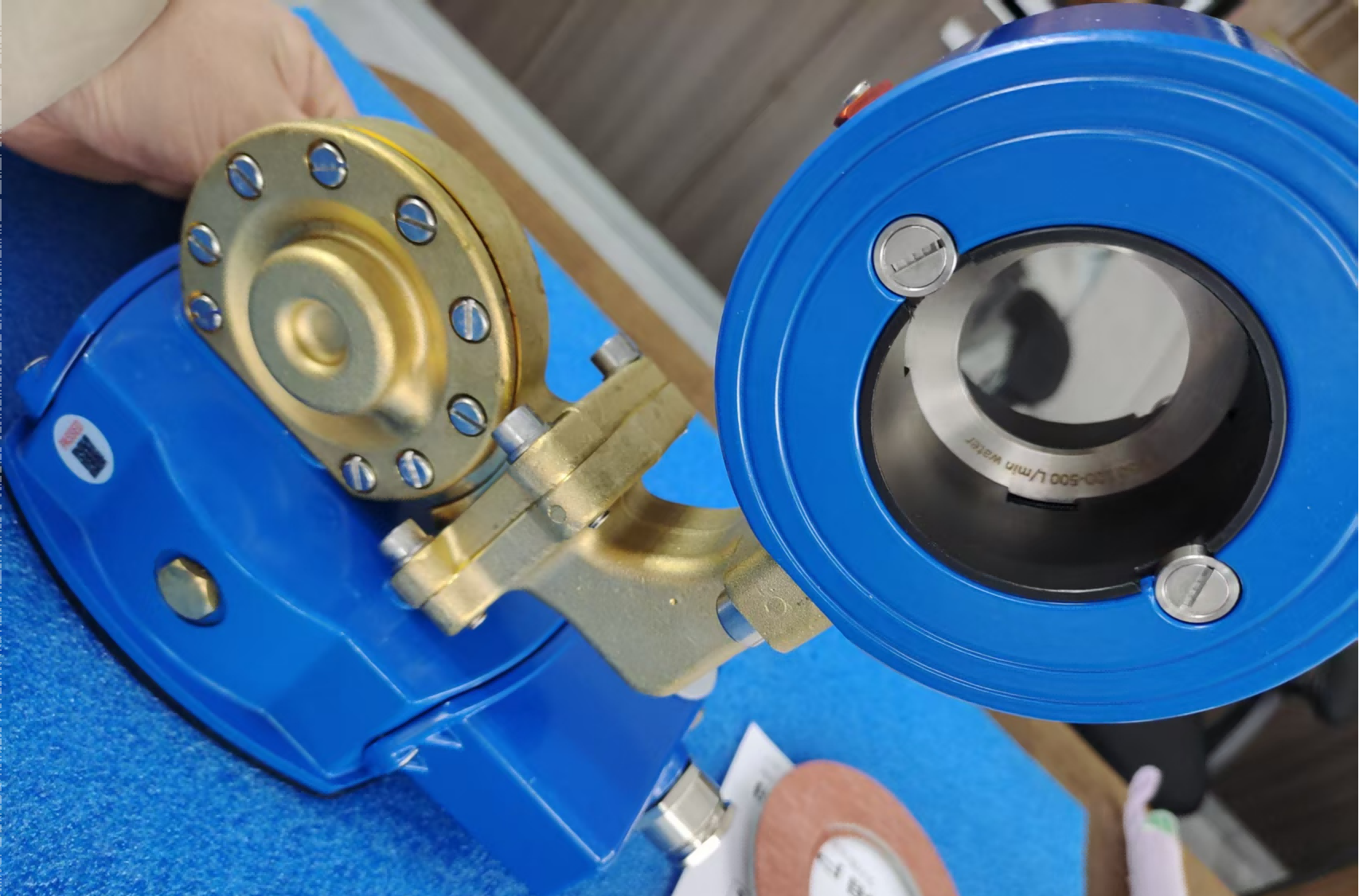

SoCare-MSI supplies Eletta Flow Monitor S25-FA50

Product Model: S25-FA50

Product Description

DN50,PN16

Process connection: Wafer mounting Protection grade :IP65

Operating temperature :-20-90°C

Measurement parameters

Range :100-5001/min

Medium: Water

Installation code

Eletta is a leading manufacturer of flow measurement and control technologies.

Here’s a detailed breakdown of what the Eletta Flow Monitor is, its key features, applications, and how it works.

What is the Eletta Flow Monitor?

The Eletta™ Flow Monitor is a high-performance, ultrasonic flow meter designed for precise, reliable, and non-invasive measurement of liquid flow in a wide range of industrial and municipal applications. It's known for its accuracy, durability, and advanced diagnostics.

Its most distinctive feature is that it is a clamp-on meter, meaning sensors are attached to the outside of the pipe. This eliminates the need for cutting into the pipe or stopping the flow for installation, saving significant time and money.

Key Features & Benefits

1. Clamp-On, Non-Intrusive Design:

   · No Pipe Penetration: Prevents potential leaks and maintains pipe integrity.

   · No Pressure Drop: Does not obstruct flow, ensuring no loss of system pressure.

   · Easy Installation & Maintenance: Can be installed without shutting down the process, minimizing downtime.

2. High Accuracy:

   · Utilizes advanced ultrasonic transit-time technology to provide highly accurate flow measurements, typically within ±0.5% to ±1% of reading, depending on the model and installation conditions.

3. Versatility:

   · Wide Pipe Size Range: Can measure flow in pipes from a few inches to over 100 inches in diameter.

   · Multiple Liquids: Suitable for a variety of liquids, including water, potable water, wastewater, chemicals, oils, and fuels.

   · Various Pipe Materials: Works on a wide range of pipe materials (metal, plastic, composite) as long as they are sonically conductive.

4. Bidirectional Flow Measurement:

   · Can measure flow in both directions, which is useful for applications like network balancing or surge analysis.

5. Advanced Diagnostics:

   · The transmitter provides real-time diagnostic information about signal strength and quality, helping users verify the health of the measurement and troubleshoot issues.

6. Durable Construction:

   · Sensors and transmitters are built to withstand harsh industrial environments.

How It Works: Transit-Time Ultrasonic Technology

The Eletta uses a principle called transit-time differential. Here's a simplified explanation:

1. Two sensors are mounted on the outside of the pipe, one upstream and one downstream.

2. Each sensor acts as both a transmitter and a receiver of ultrasonic signals (sound waves).

3. The meter measures the time it takes for an ultrasonic pulse to travel with the flow (downstream) and against the flow (upstream).

4. When the fluid is stationary, both times are equal. When the fluid is moving, the pulse traveling with the flow will arrive faster.

5. The difference in transit time is directly proportional to the velocity of the fluid.

6. The meter's computer uses this velocity, along with the known pipe dimensions, to calculate the volumetric flow rate.

Common Applications

The Eletta Flow Monitor is used wherever accurate, non-invasive flow data is critical. Common applications include:

· Water & Wastewater: Monitoring raw water intake, treated water distribution, pump efficiency, and chemical dosing.

· HVAC: Measuring chilled and hot water flow in large building systems for energy management.

· Power Generation: Monitoring cooling water flow.

· Chemical & Industrial Processes: Measuring the flow of various process liquids without risk of contamination.

· Irrigation: Monitoring water usage in large-scale agricultural systems.

Eletta Models and Variations

Badger Meter offers different models and configurations of the Eletta to suit various needs:

· Eletta Sx: A standard model for general-purpose applications.

· Eletta Dx: Often includes dual-channel capability, allowing it to monitor two separate flow lines or provide redundant measurement on one line.

· Fixed vs. Portable Systems: Most are fixed installations, but the technology can be used in portable kits for temporary surveys or leak detection.

In short, the Badger Meter Eletta Flow Monitor is a sophisticated, clamp-on ultrasonic flow meter prized for its:

· Non-invasive installation

· High accuracy

· Application versatility

· Robust diagnostic capabilities

If you are considering an Eletta for a specific project,pls contact with MSI. We can provide model-specific datasheets, pricing, and help you determine the correct sensor type and configuration for your pipe size, liquid, and accuracy requirements.

Pls contact us if you need: info@socaremsi.com

With SoCare®-MSI,you can expect more!
