Steel Structure Workshop

1.Pre-engineered Steel Structure Description

Steel Structure is a new type of building structure system, which is formed by the main steel framework linking up H section, Z section and U section steel components, roof and walls using a variety of panels and other components such as windows, doors, cranes, etc.

2. Pre-engineered Steel Structure Protection

1) Roofing Panel:Single/Composite

2) Sunshine Panel

3) Accessories Ventilator

4) Door: Rolled up door or Sliding door

5) Window: Plastic Steel

6) Gutter:Rain Tube

3. Pre-engineered Steel Structure Factory Material List

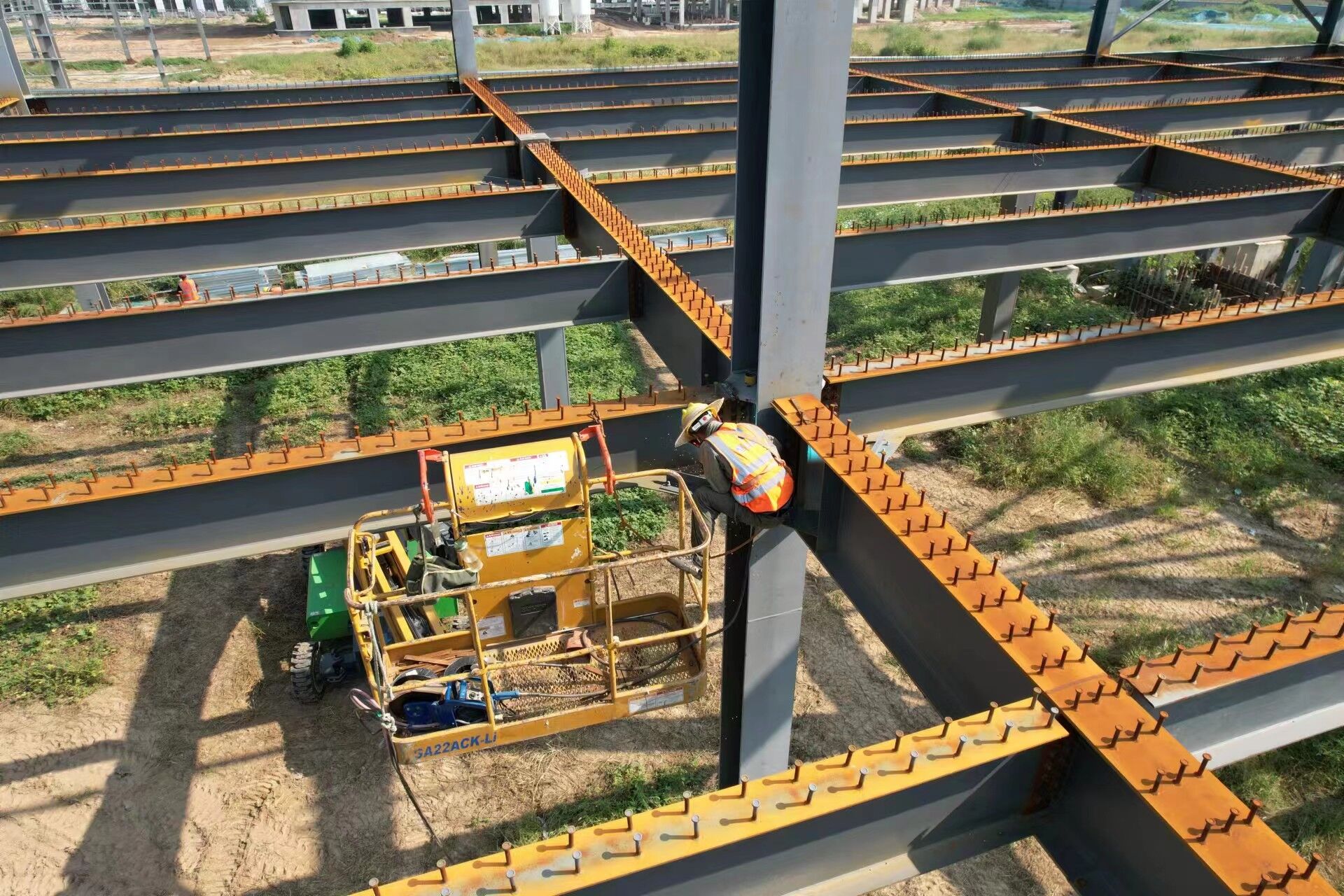

1) Main frame (columns and beams)is made of welded H-style steel.

2) Columns are connected to the foundation by pre-embeddding anchor bolt.

3) Beams and columns, beams and beams are connected with high intensity bolts.

4) Wall and roof are made of color steel board/color steel sandwich panels, which are connected

with the purlin by self-tapping nails.

5) Doors and windows can be designed at anywhere which can be made into normal

type, sliding type or roll up type with material of PVC, metal, alloy aluminum, sandwich

panel and others.

4. Pre-engineered Steel Structure Features and Service

1) Attractive design ----beautiful and elegant looks, use the color steel sandwich panel, the material is polystyrene foam.

2) Easy to assemble and dismantle -----can be rebuilt for dozens of time with plugs and screw.

3) Firm structure----steel frame structure and sandwich panels

4) Durable----the steel frame parts are all processed with anti-corrosion coating and can be used for as long as 30 years.

5) Reduce cost by integrating &manufacturing &service processes.

6) With reliable quality and efficient service from developing, design, manufacturing to installation

7) Sizes and design are according to requirements

5. Pre-engineered Steel Structure Factory Advantage

Why can steel structures be widely used in the types of buildings and structures mentioned above? Because steel has many advantages compared to other construction materials, such as timber and reinforced concrete.

(1) Steel has high strength and low weight. There is a critical factor a which is the ratio of material density to its strength. The lower a means the lower mass of the structure constructed under the same load. The a of steel is about 1.7-3.7, the a of timber is about 5.4, and the a of concrete is about 18, the unit is 10-4/m.

(2) Steel is a uniform material, and its properties have better predictability, In addition, steel is an isotropic material, and some basic formulas of material mechanics can be applied directly.

(3) Steel has good plasticity and toughness, which means steel structures can be used directly under dynamic load and have good seismic performances under earthquakes.

(4) Steel is good airtight and water-tight material. Therefore, after the steel structure is connected by welding, it can meet the airtight and water-tight requirements of some high-pressure vessels and pipelines.

(5) Steel structures are easy to manufacture and construct. Steel structures are convenient for prefabrication in the factory. Steel structures are easy to install on the construction site. So, steel structures are natural prefabricated structures and can help to reduce the construction cost.

(6) The seismic performance of the steel structure is good. Under appropriate design conditions, the steel structure is the least damaged in previous world-renowned earthquakes. As a result, it has been recognized as a structure suitable for use in earthquake-resistant areas.
