High-quality gears are critical for robotics, directly impacting performance, precision, reliability, and noise levels. Here’s a comprehensive guide to understanding and selecting the right gears for your robotics applications.

Key Characteristics of High-Quality Gears for Robotics

1. High Precision & Low Backlash: This is the #1 priority for most robots, especially in arms and CNC-like machines. Backlash is the slight movement or "play" between meshing gear teeth. High-quality gears minimize this to ensure accurate positioning and repeatability.

2. High Efficiency: This translates to less power loss as heat and longer battery life for mobile robots. Efficiency is determined by gear tooth design, material, and surface finish.

3. Durability & Strength: Gears must withstand operational loads, shock loads, and continuous use without failing. This is a function of material and heat treatment.

4. Low Noise & Vibration: Important for consumer-facing, medical, or laboratory robots. Helical and planetary gears are generally quieter than spur gears.

5. Lightweight: Especially critical for robotic arms (reduces inertia, allowing faster movement) and drones/UGVs. Materials like aluminum and high-strength plastics are used.

6. Compact Design: Robotics often demands high power density (high torque in a small package). Planetary gearboxes excel here.

Common Gear Types in Robotics

Gear Type Best For Advantages Disadvantages

Spur Gears Simple transmissions, low-speed applications, conveyor drives. Simple, inexpensive, high efficiency, no axial thrust. Noisy, cannot handle high loads as well as others, must be perfectly aligned.

Helical Gears High-speed, high-torque applications where noise is a concern (e.g., robot arm joints). Smoother and quieter operation than spur gears due to gradual tooth engagement. Higher load capacity. Produces axial thrust, requiring thrust bearings. Slightly lower efficiency due to sliding friction.

Planetary Gears High-torque, compact applications (joints of collaborative robots, wheel drives, drones). Excellent power density, high torque-to-weight ratio, low backlash options, high durability. More complex and expensive to manufacture than spur gears.

Harmonic Drive Gears Ultra-high precision applications (industrial robot arms, aerospace, CNC). Extremely low/zero backlash, very high gear ratios in a compact stage, high positional accuracy. Can have lower torsional stiffness and efficiency than planetary gears. More expensive.

Bevel Gears Transmitting power between non-parallel, intersecting shafts (e.g., changing axis of rotation by 90°). Allows for 90° power transmission. Generally higher backlash, requires precise alignment.

Worm Gears Applications requiring high reduction ratios and self-locking (prevents back-driving). (e.g., lifting mechanisms). High reduction ratio in a single stage, compact, self-locking (in most configurations). Low efficiency, high friction, can generate significant heat.

Materials for High-Quality Gears

· Steel (Alloy Steel, Stainless Steel): The gold standard for high-strength and durability. Often case-hardened or through-hardened for a hard, wear-resistant surface and a tough, shock-absorbing core. Used in high-load industrial robots.

· Brass/Bronze: Softer than steel, often used for the worm in a worm gear set to provide a sacrificial, low-friction material.

· Aluminum: Excellent for weight-sensitive applications where very high strength isn't required. Often anodized for surface hardness.

· Engineering Plastics (POM/Delrin®, Nylon, PEEK):

· Advantages: Very quiet, self-lubricating, corrosion-resistant, lightweight, and inexpensive.

· Disadvantages: Lower strength, susceptible to creep over time, sensitive to temperature.

· Use Case: Ideal for low-to-medium load consumer robots, 3D printers, and non-critical mechanisms.

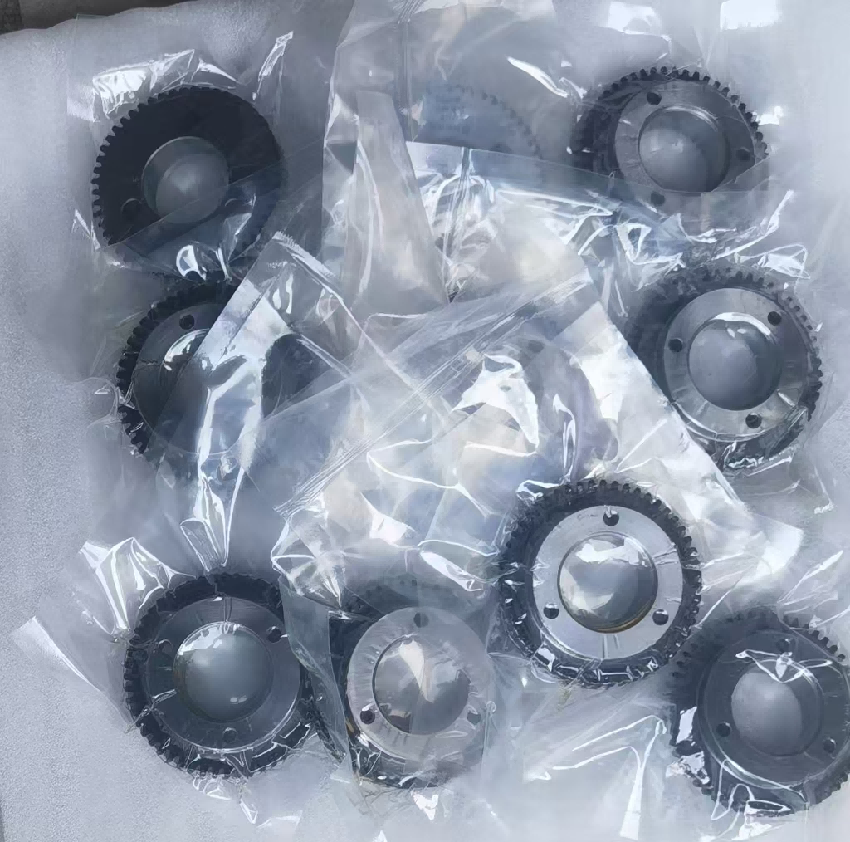

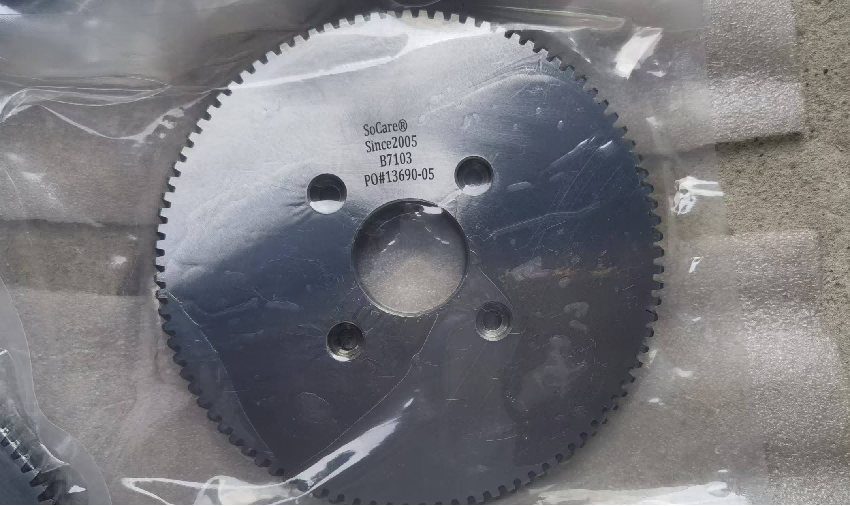

Also,customized gears are an important part of our business, we could supply special gears made to order with special raw material, special treatment on surface or structure.
