We can produce Slew Rings to replace Series 19 Three-row roller bearing:

191.20.1250.990.41.1502; 191.20.1400.990.41.1502; 191.20.1600.990.41.1502;

191.20.1800.990.41.1502; 191.20.2000.990.41.1502;191.25.1800.990.41.1502;

191.25.2000.990.41.1502; 191.25.2240.990.41.1502; 191.25.2500.990.41.1502;

191.25.2800.990.41.1502; 191.32.2240.990.41.1502; 191.32.2500.990.41.1502;

191.32.2800.990.41.1502; 191.32.3150.990.41.1502; 191.32.3550.990.41.1502;

191.32.4000.990.41.1502; 191.40.2800.990.41.1502; 191.40.3150.990.41.1502;

191.40.3550.990.41.1502; 191.40.4000.990.41.1502 4; 191.40.4500.990.41.1502;

191.50.3150.990.41.1502;191.50.3550.990.41.1502; 191.50.4000.990.41.1502;

191.50.4500.990.41.1502; 191.50.5000.990.41.1502; 191.50.5600.990.41.1502;

191.50.6300.990.41.1502;191.50.6735.990.41.1502

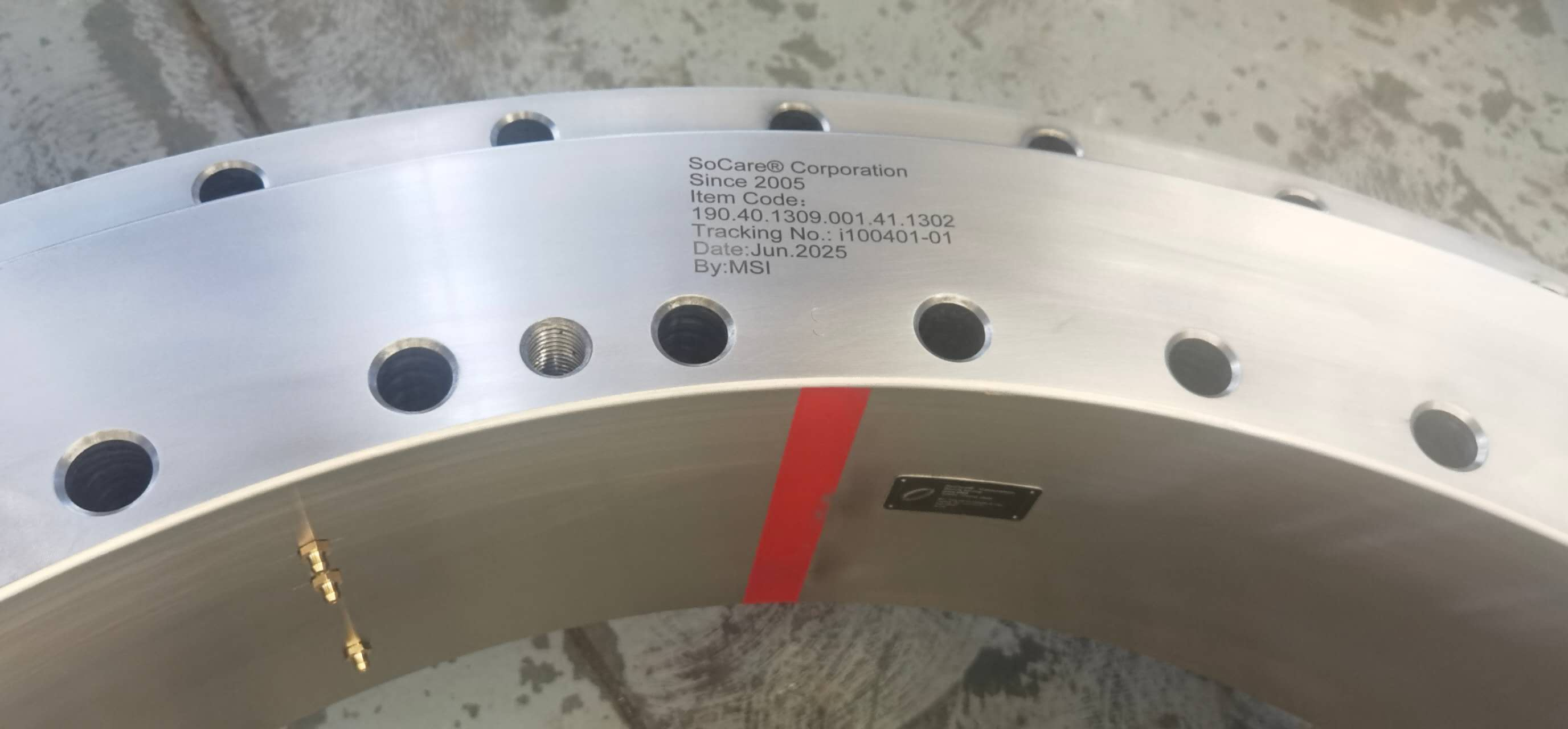

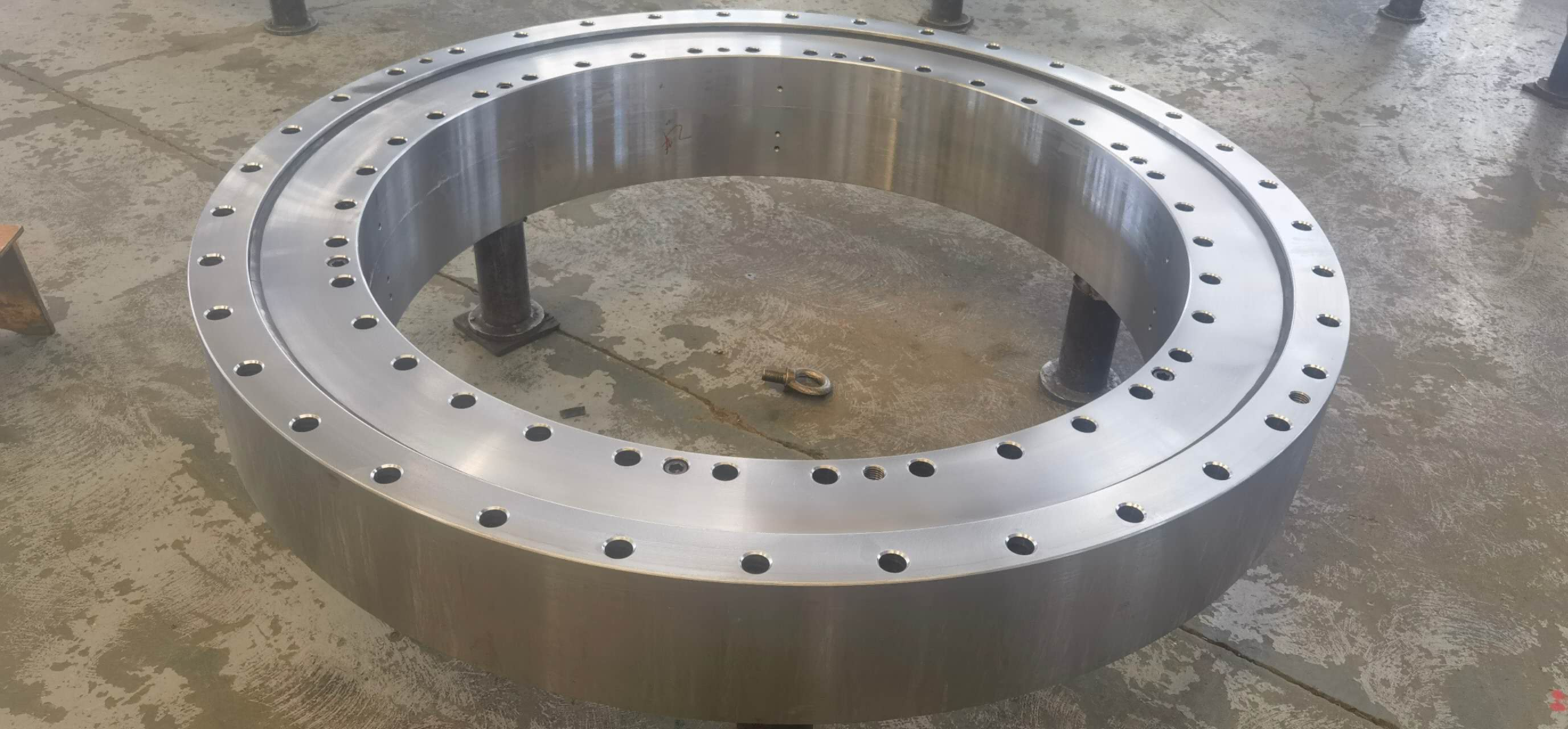

SCB-TR Triple-row Roller Slewing Bearings

Increased stiffness and capacity

OD size range up : 1200- 7000mm

Construction

-Three separate rows of rollers

-Top and bottom rollers transmit thrust and moment load

-Middle roller transmits radial loading

-Sealed

-Ring Configuration:

 Non geared

 External gear

 Internal gear

-Grease fittings for lubrication

-Surface treatment: HMS treatment

Not easy to fall off

HMS can effectively resist the erosion of sea wind and sea water

to achieve the purpose of anti-corrosion

Longer service life

Areas of applications：

Aerial Hydraulic Platforms • Antennas • Arc Furnaces • Band Conveyor • Blast Furnace Gas Cover • Casting

Equipment • Construction Machinery • Container Spreader • Crane Wheel Bogie • Deck Cranes • EDS Scanner

Excavators • Fifth Wheel / Trailer Bogie • Gantry Cranes • Ladle Turrets • Machine Tools • Mechanical Engineering

Medical Equipment • Mixer • Mobile Cranes • Mooring station • Off shore Crane • Packaging or Bottling Equipment

Paddle Wheel Bearings • Ship Loader/Unloader • Solar Energy Plants • Special Sales • Stackers/Reclaimers

Swivel Bearings • Telescopes • Thruster • Tidal Energy Plants • Tower Cranes • Truck Mounted Cranes • Tunnel

Boring Machines • Water Treatment Equipment • Wind Energy Plants

Slewing bearings comprise an inner ring and an outer ring, one of which usually incorporates a gear. Together with attachment holes in both rings, they enable an optimized power transmission with a simple and quick connection between adjacent machine components. The bearing raceways, in conjunction with the rolling elements and cages or spacers, are designed to accommodate loads acting singly or in combination, and in any direction.SoCare® manufactures standard and customized slewing bearings in various designs, with outside diameters from 0,1 to 18 m to meet the demands of particular applications.

Also,customized Slewing Bearings are an important part of our business, we could supply special bearings made to order with special raw material, special treatment on surface or structure.

Pls contact us if you need:info@socaremsi.com

With SoCare®-MSI,you can expect more!
